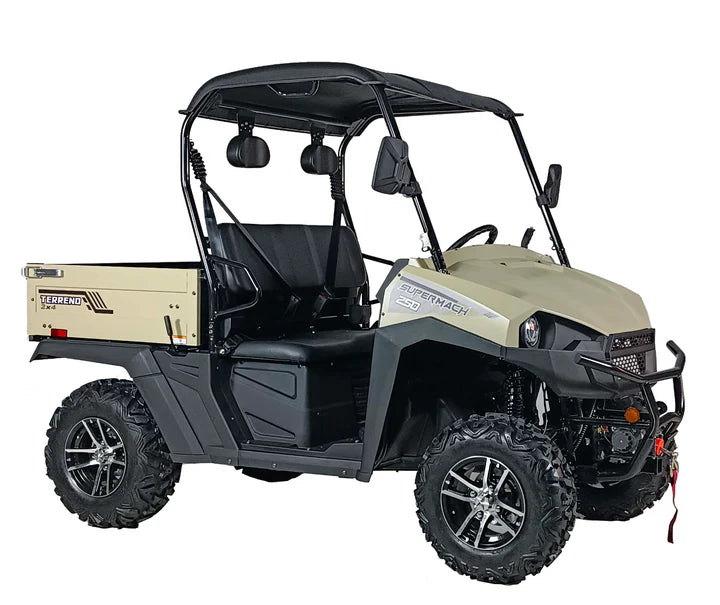

UTV 250-2 Supermach
UTV 250-2 Supermach
Regular price
$7,999.99 USD
Regular price
$9,799.99 USD
Sale price
$7,999.99 USD
Unit price
/
per
Couldn't load pickup availability
Specification UTV 250-2
Engine model JN172MM/JN1P65YML-6
Battery 12V 9AH
Type Single Cylinder, Four-Stroke, Horizontal, Forced Air Cooling (oil cooler can be added)
Bore* stroke 65*60
Compression ratio 9.5:1
Working volume of cylinder 199.1mL
Max. engine power (E-mark) 9.3kW/7000r/min
Maximum Speed 37MPH (60KM)
Max. engine torque Air Cooling
Fuel Grade 92
Lubrication Method Pressure Splash Type
Starting Model Electric Starting
Ignition Mode CDI
Transmission Mode Manual
Vehicle Commander 106in (2700mm)
Vehicle Width 57in (1450mm)
Car Height 76in (1940mm)
Wheelbase 70in (1790mm)
Track width Front: 45.3in (1150mm) Rear: 45.3in (1150mm)
Minimum Ground Clearance 11.8in (300mm)
Seat Cushion Height 33.6in (854mm)
Turning Circle Radius 197in (5000mm)
More Specification
Damping Form Coil Spring Damping
Brake Type Main Brake Hydraulic Disc Type One Drive Four
Emergency/ Parking Brake Brake Rear Axle /Manual Operation
Rim Type Aluminum
Tire Specification Front: 25* 8-12/ Rear: 25 * 10-12
Fuel Tank Volume 23L
Rated Load Capacity 794 lbs
Container Load 441 lbs
Max. Total Mass 1790 lbs
Frame Steel Pipe Structure
Clutch Type Automatic Clutch
Crankcase Lubricating Oil SF-15W/40
Oil Capacity 41oz (1200ml)
Fuel Tank Capacity 6Gallons (23L)
Headlamps 35W LED White Light
Drive Mode Rear Drive
Parking mode Two Rounds
Parking Brake Mechanical
Magneto Type Flywheel Rotor Type DC Output
Number of Containers (40GP) 16
Package Size 91.7in x 57.5in x 49.6in
